Nginx module

edit
IMPORTANT: This documentation is no longer updated. Refer to Elastic's version policy and the latest documentation.

Nginx module

edit

This module periodically fetches metrics from Nginx servers.

Compatibility

edit

The Nginx metricsets were tested with Nginx 1.9 and are expected to work with all version >= 1.9.

Dashboard

edit

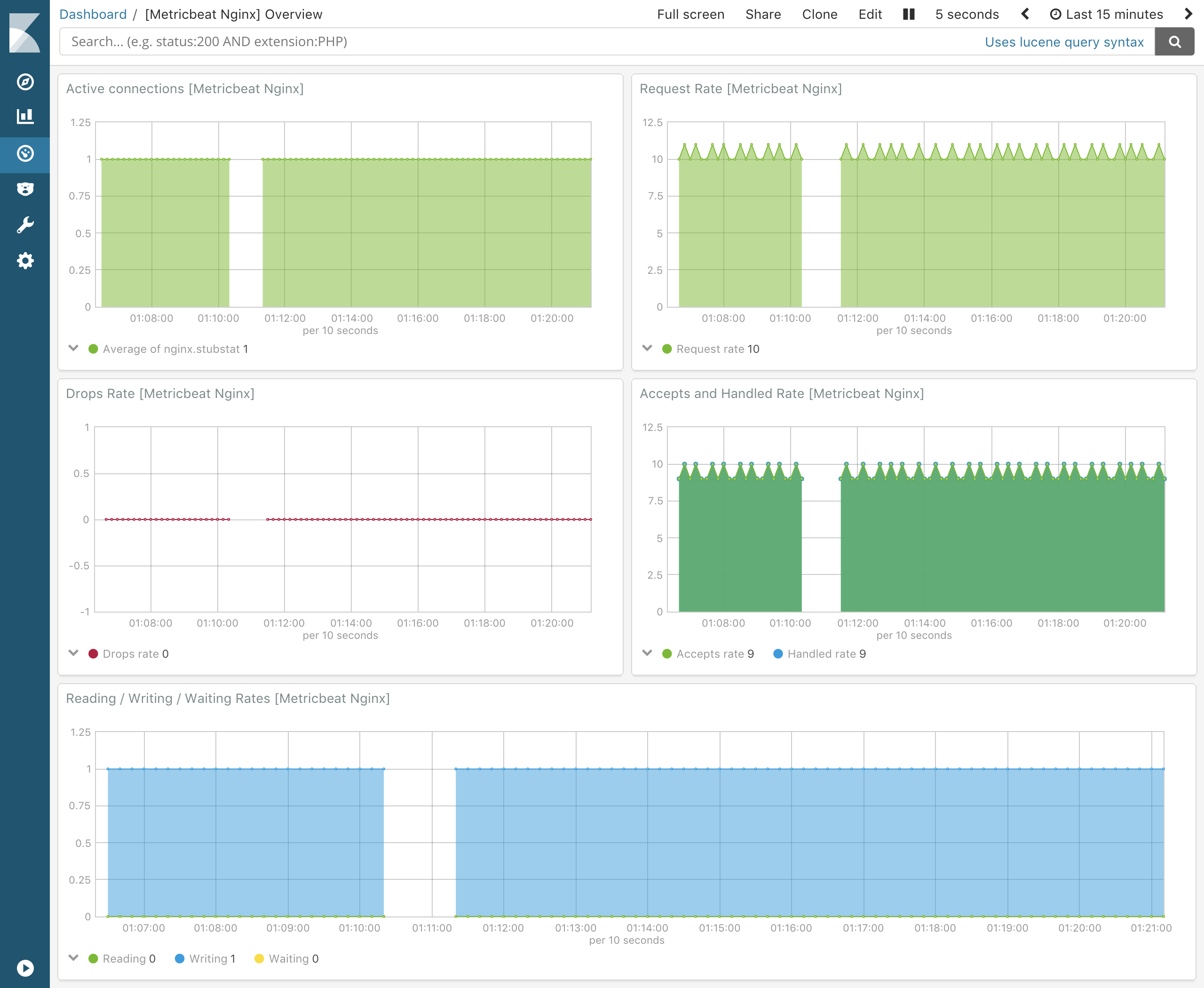

The nginx module comes with a predefined dashboard. For example:

metricbeat nginx

Example configuration

edit

The Nginx module supports the standard configuration options that are described in Specify which modules to run. Here is an example configuration:

metricbeat.modules:
- module: nginx
  metricsets: ["stubstatus"]
  period: 10s

  # Nginx hosts
  hosts: ["http://127.0.0.1"]

  # Path to server status. Default server-status
  #server_status_path: "server-status"

This module supports TLS connection when using ssl config field, as described in Specify SSL settings.

Metricsets

edit

The following metricsets are available:
